SQL Join Queries Tutorial



Joining tables in SQL

MySQL JOINS: In this tutorial, you are going to learn how to use different types of

joins on tables. Below you will find different types of join queries with examples.

Types of JOINS in SQL

1. INNER JOIN
2.  OUTER JOIN
1. LEFT OUTER JOIN
2. RIGHT OUTER JOIN
3. SELF JOIN


INNER JOIN –  Returns only all common rows from both the tables



TOC

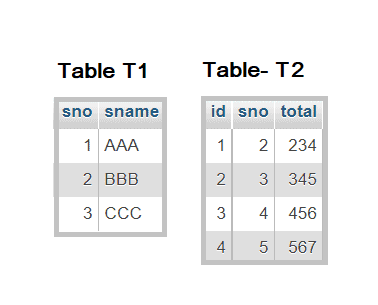

Create following tables in order to test the query

Use the queries below to create tables in MySQL:



Query -T1



--
-- Table structure for table `t1`
--

CREATE TABLE IF NOT EXISTS `t1` (
  `sno` int(11) NOT NULL AUTO_INCREMENT,
  `sname` varchar(30) NOT NULL,
  PRIMARY KEY (`sno`)
) ENGINE=InnoDB  DEFAULT CHARSET=latin1 AUTO_INCREMENT=4 ;

--
-- Dumping data for table `t1`
--

INSERT INTO `t1` (`sno`, `sname`) VALUES
(1, 'AAA'),
(2, 'BBB'),
(3, 'CCC');



 Query -T2





TOP

--
-- Table structure for table `t2`
--

CREATE TABLE IF NOT EXISTS `t2` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `sno` int(11) NOT NULL,
  `total` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB  DEFAULT CHARSET=latin1 AUTO_INCREMENT=5 ;

--
-- Dumping data for table `t2`
--

INSERT INTO `t2` (`id`, `sno`, `total`) VALUES
(1, 2, 234),
(2, 3, 345),
(3, 4, 456),
(4, 5, 567);





Join Syn:



SELECT select_column_list



FROM table1



INNER JOIN table2



ON < join_condition >;

Query:

SELECT T1.SNO, T1.SNAME, T2.TOTAL


FROM T1

INNER JOIN T2

ON T1.SNO = T2.SNO;

O/P:



Go2TOP



OUTER JOIN

1. Left Outer Join / Left Join -

Displays all the rows from the left table and common rows of both tables.

GotoTOC


SELECT T1.SNO, T1.SNAME, T2.TOTAL
FROM T1

LEFT JOIN T2

ON T1.SNO = T2.SNO;

O/P:

 Below Venn diagram illustrates the outer join.

2. Right Outer Join  / Right Join






GotoTOC

Returns all rows from the right table, and common rows of both tables.

SELECT T1.SNO, T1.SNAME, T2.TOTAL


FROM T1 RIGHT JOIN T2

ON T1.SNO = T2.SNO;

O/P:



3. SELF JOIN

A table is joined with itself is known as SELF Join.

Query - EMPLOYEE

TOP↑

Use the code below to create a table - EMPLOYEE:

--
-- Table structure for table `employee`
--

CREATE TABLE IF NOT EXISTS `employee` (
  `empno` int(11) NOT NULL,
  `employee` varchar(50) NOT NULL,
  `manager` varchar(15) NOT NULL,
  PRIMARY KEY (`empno`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1;

--
-- Dumping data for table `employee`
--

INSERT INTO `employee` (`empno`, `employee`, `manager`) VALUES
(100, 'AAA', '130'),
(110, 'BBB', '150'),
(120, 'CCC', '140'),
(130, 'DDD', '140'),
(140, 'EEE', '100'),
(150, 'FFF', '110');

SELECT E.EMPNO, E1.EMPLOYEE AS EMPLOYEE, E.EMPLOYEE AS MANAGER

FROM EMPLOYEE E, EMPLOYEE E1

WHERE E.EMPNO = E1.MANAGER

 TOPMenu

O/P:
